Description

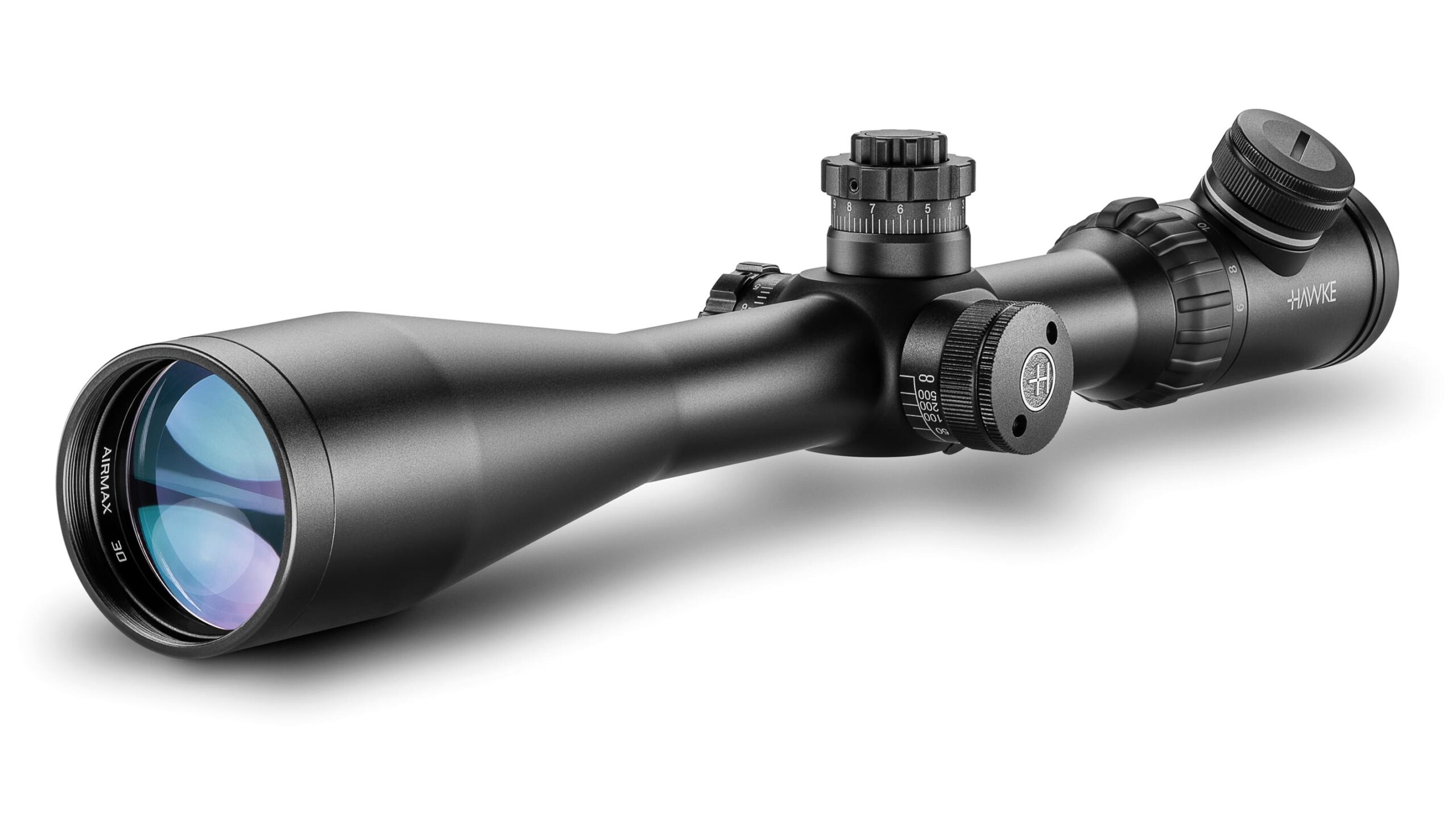

Hawke Airmax 30 WA SF Compact 6-24×50 SF AMX IR.
Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Target Turrets
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Illumination
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
- Nitrogen purged. Shockproof. Waterproof. Fog proof.
- All calibre rated.
- Hawke No-Fault Lifetime Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- Length: 329mm. 13″
- Weight: 670g. 23.6oz
- Eye relief: 76mm. 3″
- Focus/Parallax – Side Focus. 9m – ∞. 10yds – ∞
- Field of View: 7.3 – 1.8m @100m. 21.9 – 5.5ft @100yds
- Exit Pupil: 8.3-2.1mm. 0.33-0.08″
- Chassis. 30mm Mono-tube
- Optical System. 6-24×
- Objective. 50mm
- Illumination. Red
- Reticle. AMX IR
- Elevation Increment. 1⁄10 MRAD
- Elevation Adjustment Range: 16 MRAD
- Windage Increment. 1⁄10 MRAD
- Windage Adjustment Range. 16 MRAD
- Material. Aluminium
- Ocular Type. Fast Focus
- Lens Coating. Fully Multi-Coated – 16 Layers
- Power Selector Style. RKnurled Posi-Grip
- Focal Plane. Second Focal Plane (SFP)
- Turret Caps. Yes
- Turret Type. Capped Target Turrets
-
SUPPLIED WITH
Box
Instruction Manual
Reticle Booklet
Lens Cloth
Lens Covers
3″ Sidewheel
CR2032 Battery
